2 Inch From 6 To 51mm 10 Dies Hydraulic Hose Crimping Machine With Dual Functionality And Hose Skiving Machine 2 Functions Into One Machine Crimping/skiving For Robust Construction

2 Inch From 6 To 51mm 10 Dies Hydraulic Hose Crimping Machine With Dual Functionality And Hose Skiving Machine 2 Functions Into One Machine Crimping/skiving For Robust Construction

الاسم التجاري:	FY
رقم الطراز:	FY-51YTJ
الـ MOQ:	1 مجموعة
السعر:	USD$ 1450/1400/1350/1300
شروط الدفع:	L / C، T / T، D / A، D / P، ويسترن يونيون، موني جرام
القدرة على التوريد:	300 مجموعات شهريا

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين ، شنغهاي

إصدار الشهادات:

الوثيقة:

ضغط النظام:

26 ميجا باسكال / 31.5 ميجا باسكال

اسم المنتج:

آلة تجعيد الخراطيم الهيدروليكية 2 بوصة 6-51 مم 10 قوالب مع وظيفة مزدوجة وآلة كشط الخراطيم وظيفتين في

تفاصيل التغليف:

صندوق خشبي

القدرة على العرض:

300 مجموعات شهريا

إبراز:

2 inch hydraulic hose crimping machine

dual function hose crimping skiving machine

51mm hydraulic hose crimper with skiving

وصف المنتج

2 Inch From 6 To 51mm 10 Dies Hydraulic Hose Crimping Machine With Dual Functionality And Hose Skiving Machine 2 Functions Into One Machine Crimping/skiving For Robust Construction

2-Inch Dual-Function Hydraulic Hose Crimping Machine with Integrated Skiving: Efficiency Redefined

Overview

Introducing our innovative 2-Inch Dual-Function Hydraulic Hose Crimping Machine with integrated skiving capabilities, a robust and efficient solution designed to streamline your hydraulic hose assembly process. This groundbreaking machine combines two essential functions—crimping and skiving—into a single unit, offering unparalleled convenience, space-saving benefits, and enhanced productivity. With a versatile crimping range from 6mm to 51mm and 10 interchangeable dies, this Hydraulic Hose Crimping Machine is engineered for precision and durability. It's the ideal choice for hydraulic/car repair shops, the oil industry, and hose manufacturers across the USA, Europe, and Southeast Asia, seeking to optimize their operations and achieve superior results.

Key Features and Advantages

Dual Functionality: Crimping and Skiving in One Machine

The standout feature of this Hydraulic Hose Crimping Machine is its revolutionary dual functionality, integrating both crimping and hose skiving into a single, compact unit. This eliminates the need for separate machines, significantly saving valuable workshop space and reducing initial investment costs. The seamless transition between skiving and crimping operations enhances workflow efficiency, allowing operators to prepare and assemble hoses with unprecedented speed and convenience.

Enhanced Efficiency and Productivity

By combining two critical processes, this Hydraulic Hose Crimping Machine dramatically improves operational efficiency. Operators can perform both skiving and crimping tasks without moving between different workstations, reducing handling time and accelerating the overall assembly process. This integrated approach leads to higher throughput and increased productivity, making it an invaluable asset for businesses with demanding production schedules.

Robust Construction for Unwavering Reliability

Built with a focus on durability, this Hydraulic Hose Crimping Machine features a robust construction designed to withstand the rigors of continuous industrial use. High-quality materials and precision engineering ensure exceptional stability during both crimping and skiving operations, guaranteeing a long operational lifespan and minimal maintenance requirements. This machine is an investment in consistent quality and operational longevity.

Wide 6-51mm Crimping Range with 10 Interchangeable Dies

This Hydraulic Hose Crimping Machine offers a versatile crimping range from 6mm to 51mm (2 inches), accommodating a broad spectrum of hydraulic hose sizes and types. It comes equipped with 10 high-quality, interchangeable dies, providing the flexibility needed to handle various hose diameters and fitting types. This comprehensive die set ensures accuracy and efficiency, allowing operators to perform a wide array of crimping tasks with precision.

Precision Skiving for Optimal Hose Preparation

The integrated hose skiving function ensures precise and consistent preparation of hoses before crimping. Proper skiving is crucial for achieving optimal crimp quality and preventing premature hose failure. This machine delivers accurate skiving, removing the outer cover or inner tube to the exact specifications required for a perfect fit, thereby enhancing the reliability and safety of the final hose assembly.

Optimized for Global Markets

Targeting the USA, European, and Southeast Asian markets, this Hydraulic Hose Crimping Machine is designed to meet international standards for quality and performance. Its dual functionality, efficiency, and robust design make it a valuable asset for businesses in these regions, catering to the specific needs of hydraulic service providers, car repair shops, and the oil sector.

Technical Specifications

Attribute	Value
System Pressure	26Mpa/31.5Mpa (Optional)
Crimping Range	6-51mm (1/4"-2" inner diameter)
Quantity of Dies	10 sets
Accuracy	0.01mm
Work Efficiency	200pcs/h
Gross Weight	320kg

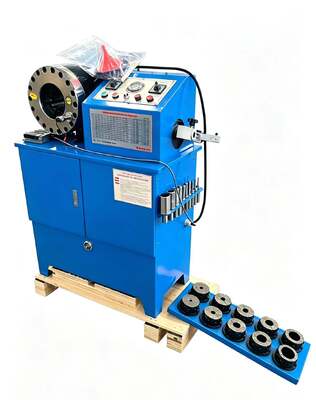

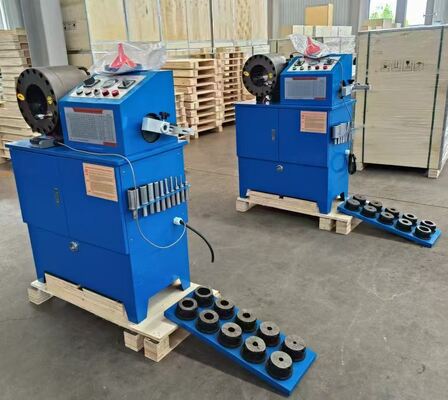

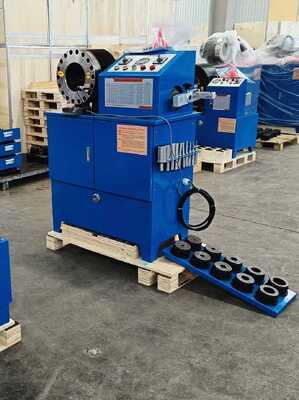

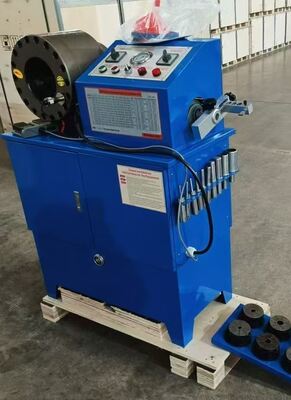

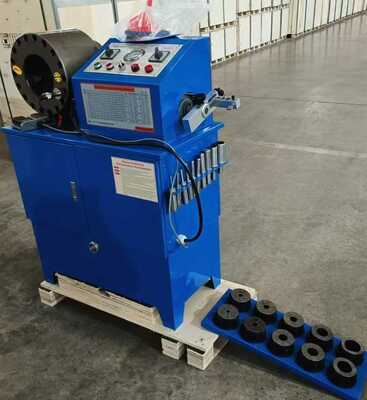

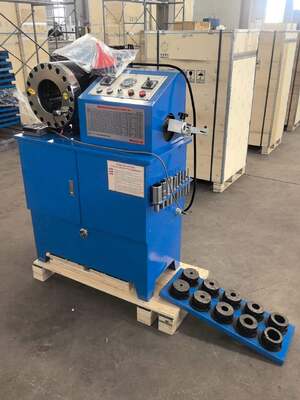

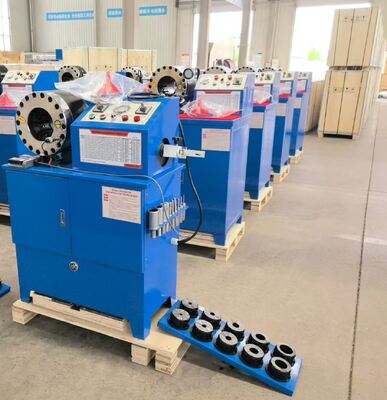

Product Images

Applications

Construction sites
Mining operations
Agricultural settings
Transportation industry
Industrial maintenance
Hydraulic system repair

Support and Services

Video technical support
Online troubleshooting
Installation guidance
Preventative maintenance advice

Packing and Shipping

The machine is securely packaged in wooden crates for protection during transportation. Standard delivery time is 2-7 working days with tracking information provided.

Frequently Asked Questions

Q: What is the model number for this machine?

A: FY-51YTJ Hydraulic Hose Crimping Machine

Q: Is this machine certified?

A: Yes, it is CE certified.

Q: What is the minimum order quantity?

A: 1 set, with a supply ability of 300 sets per month.
