Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension

الاسم التجاري: FY
رقم الطراز: FY-51YTJ
الـ MOQ: 1 مجموعة
السعر: USD$ 1450/1400/1350/1300
شروط الدفع: L/C ، T/T ، D/A ، D/P ، Western Union ، Moneygram
القدرة على التوريد: 300 مجموعة في الشهر
معلومات مفصلة
مكان المنشأ:
الصين ، شنغهاي
إصدار الشهادات:
CE
ضغط النظام:
26 ميجا باسكال / 31.5 ميجا باسكال (اختياري)
كمية القوالب:
10 مجموعات
نطاق العقص:
6-51mm (1/4 ''-2 'بوصة القطر الداخلي للخرطوم)
الوزن الإجمالي:
320 كلغ
الضوء العالي:
آلة كبس خراطيم هيدروليكية ، آلة كبس خراطيم هيدروليكية مرنة ، آلة كبس خراطيم مرنة
طلب:
خرطوم تجعيد
خدمة ما بعد البيع المقدمة:
الدعم الفني للفيديو ، الدعم عبر الإنترنت
البعد (الطول * العرض * الارتفاع):
1030*510*1270 مم
اسم المنتج:
آلة تجعيد وتقطيع الخراطيم الهيدروليكية مقاس 2 بوصة مع 10 قوالب ونطاق 6-51 مم لتطبيقات الخراطيم الواس
تفاصيل التغليف:
صندوق خشبي
القدرة على العرض:
300 مجموعة في الشهر
إبراز:

26Mpa/31.5Mpa System Pressure Hydraulic Hose Crimping Machine,320kg Gross Weight Hose Crimper,1030*510*1270 mm Dimension Hydraulic Crimper

,

320kg Gross Weight Hose Crimper

,

1030*510*1270 mm Dimension Hydraulic Crimper

وصف المنتج
2 Inch Hydraulic Hose Crimping And Skiving Machine with 10 Dies and 6-51mm Range
Product Overview
The 2 Inch Hydraulic Hose Crimping and Skiving Machine is an advanced tool designed to efficiently crimp and skive hydraulic hoses ranging from 6mm to 51mm. With its robust construction and user-friendly features, this machine is ideal for automotive, construction, and manufacturing applications. Featuring 10 dies for versatility, it is essential for professionals working with hydraulic systems.
Key Features
  • Dual Functionality: Combines crimping and skiving capabilities for efficient hose preparation
  • Wide Crimping Range: Handles hoses from 6mm to 51mm (1/4" to 2")
  • Comprehensive Die Set: Includes 10 high-quality dies for various hose types
  • Robust Construction: High-strength materials ensure durability in demanding environments
  • User-Friendly Interface: Intuitive controls suitable for all experience levels
Advantages
  • Increased efficiency with combined crimping/skiving functions
  • Precision engineering for uniform, accurate results
  • Cost-effective solution saving equipment costs and space
  • Versatile for various hose types and applications
  • Safety features for operator protection
Technical Specifications
Attribute Value
System Pressure 26Mpa/31.5Mpa (Optional)
Crimping Range 6-51mm (1/4"-2" inner diameter)
Quantity of Dies 10 sets
Accuracy 0.01mm
Work Efficiency 200pcs/h
Gross Weight 320kg
Product Images

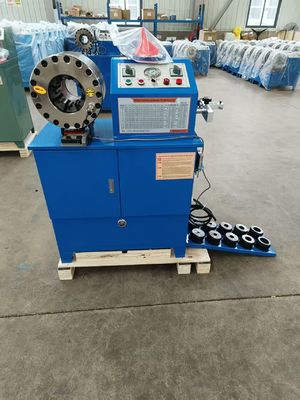

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 0

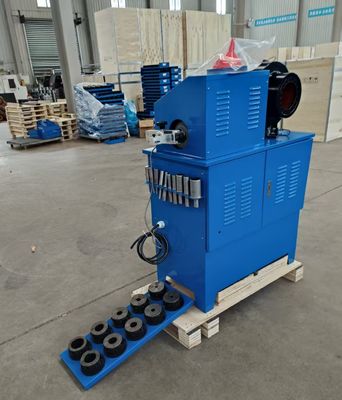

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 1

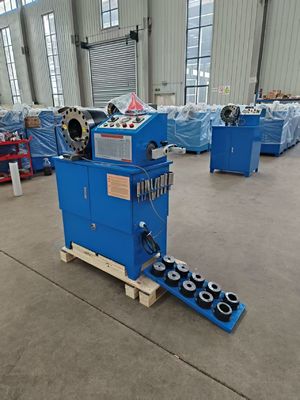

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 2

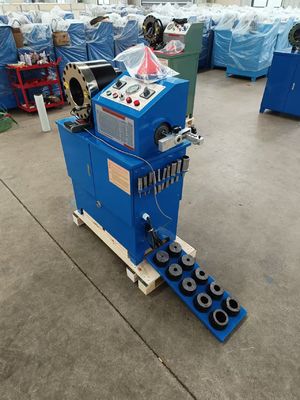

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 3

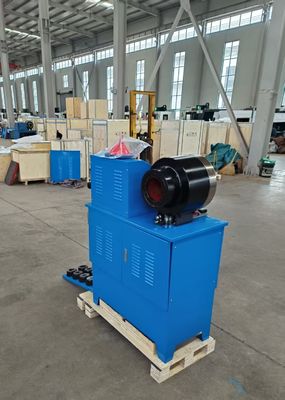

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 4

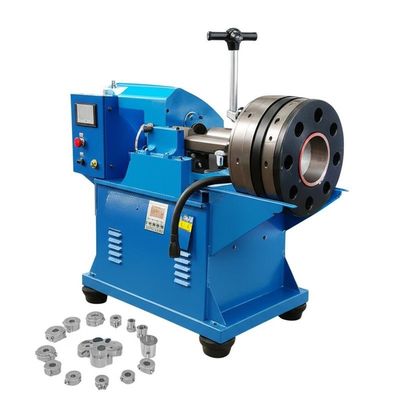

Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 5
Applications
  • Construction sites
  • Mining operations
  • Agricultural settings
  • Transportation industry
  • Industrial maintenance
  • Hydraulic system repair
Support and Services
  • Video technical support
  • Online troubleshooting
  • Installation guidance
  • Preventative maintenance advice
Packing and Shipping
The machine is securely packaged in wooden crates for protection during transportation. Standard delivery time is 2-7 working days with tracking information provided.
Frequently Asked Questions
Q: What is the model number for this machine?
A: FY-51YTJ Hydraulic Hose Crimping Machine
Q: Is this machine certified?
A: Yes, it is CE certified.
Q: What is the minimum order quantity?
A: 1 set, with a supply ability of 300 sets per month.
Hydraulic Hose Crimping Machine with 26Mpa/31.5Mpa System Pressure 320kg Gross Weight and 1030*510*1270 mm Dimension 6
