| الاسم التجاري: | FY |
| رقم الطراز: | السنة المالية- P38 |
| الـ MOQ: | 1 مجموعة |
| السعر: | USD$ 1850/1800/1750/1700 |
| شروط الدفع: | L / C، T / T، D / A، D / P، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 300 مجموعة شهريا |

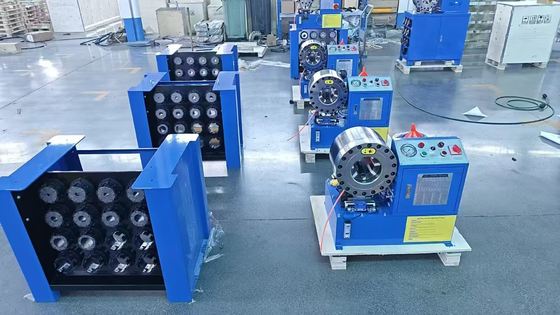

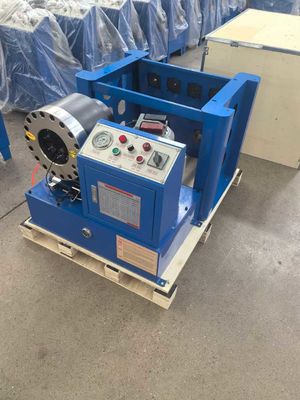

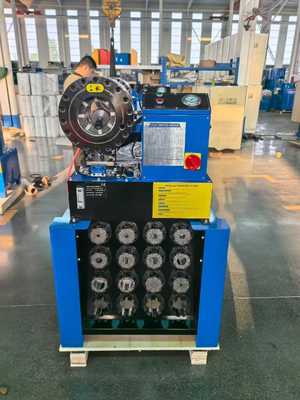

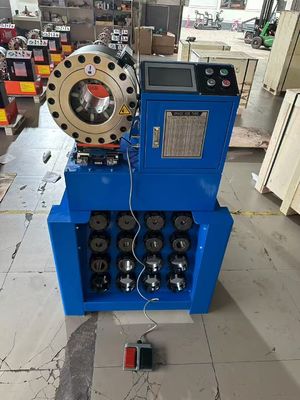

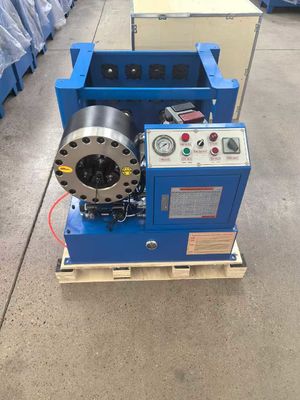

The 2 Inch Hose Crimping Machine (P38) is designed for high-accuracy crimping of hoses ranging from 1/4 inch to 2 inches. This advanced crimper features a rack and fast-change mold tools, making it ideal for quick and efficient hose assembly, particularly for braided hoses.
| Attribute | Value |
|---|---|
| Model | FY-P38 Hose Crimping Machine |
| Crimping Range | 6-38mm (1/4"-1.5") |
| Crimping Force | 300T |
| System Pressure | 26Mpa/31.5Mpa (Optional) |
| Accuracy | 0.01mm |
| Work Efficiency | 200 pcs/h |
| Voltage Options | 220V/240V/380V/415V |
| Motor Power | 3KW/4KW |
| Dimensions (L×W×H) | 950×630×700 mm |
| Weight | 275kg |
| Die Sets Included | 8 sets |
Advanced PLC System: Multifunctional control panel with different operation modes

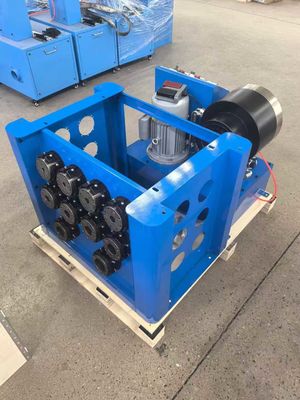

High-Quality Die Sets: 8 die sets with hardness 59-63HRC and quick change tool
Premium Motor: World-famous motor with high stability
Forged Oil Cylinder: Higher anti-wear ability compared to traditional technology
The FY-P38 is a high-performance hose crimper capable of crimping:
Note:
